Titreşim Datalogger 3-eksen VBDL100
Stok Kodu
DHKNWXY7
Garanti Süresi
12 Ay
7.895,44 TL
* 734,21 TL den başlayan taksitlerle!!
*Stokda olan Ürünler 12:00'ye kadar sipariş verilirse aynı gün kargoya verilir.
0216 3527212

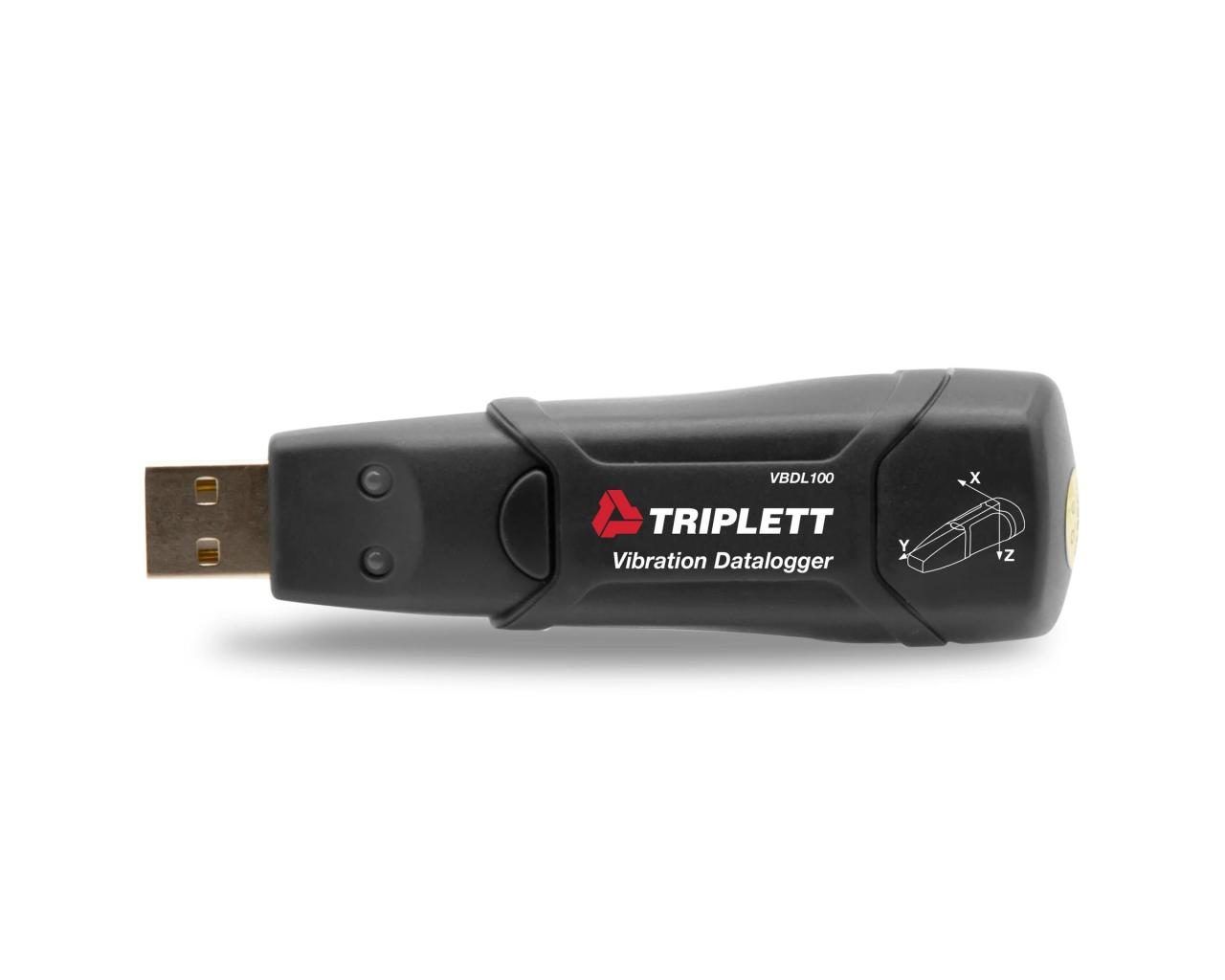

Titreşim Datalogger 3-eksen VBDL100
The Triplett Model VBDL100 Vibration Datalogger records 1-, 2-, or 3-axis shock (±18g range) and vibration (acceleration) data on stationary or transported objects. It has a user settable sampling rate and features FFT analysis, high/low alarms with LED alert, real time clock, and auto/manual start with flashing LED notification. Includes 3.6V lithium battery and magnetic/screw mounting pedestal. 1-year warranty.
- Records 3-axis g-force and related peaks
- Measure and record shock and vibration (acceleration)
- ±18g measurement range
- User configurable logging rate
- FFT analysis
- High/Low alarms with LED alert
- Real time clock
- Auto/manual start with flashing LED notification
- Includes 3.6V lithium battery
- Magnetic/screw mounting pedestal
- 1-year warranty
| VBDL100 | |
| Acceleration Range | ±18g |
| Accuracy | ±0.5g |
| Resolution | 0.00625g |
| Frequency Range | 0 to 60Hz |
| Datalogging (4MB flash) | 168042 Normal records 112028 Motion records per axis |
| Sampling Rate | Selectable 50ms to 24 hours |
| Data Format | Time stamped peak acceleration and freefall; Average and Peak Vector sums |
| PC Interface | USB |
| Power | 3.6V Lithium (Saft 14250 or equivalent) |
| Dimensions | 3.7 x 1.1 x 0.8" (95 x 28 x 21mm) |
| Weight | 6oz (172g) |
